Completely revised for 2025, the brand-new Aim Allroad redefines versatility. With its included full-length mudguards, luggage carrier and lighting system, it has everything you need right out of the box. There's a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance, and the flat disc mount integrates seamlessly with the included kickstand. Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range too, so however tall you are there'll be an Aim Allroad that fits perfectly.

• Model code
• 840160
• Colour

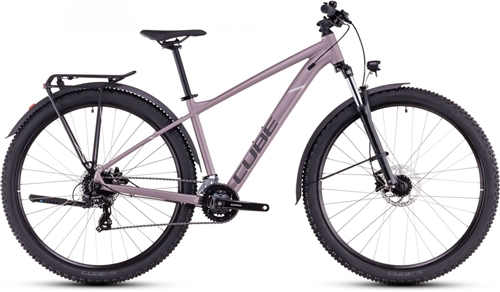

• greyishlilac/reflect
• Weight (kg)
• 16.8
• Frame
• Frame description
• Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
• Fork
• SR SUNTOUR XCE, 100mm
• Drivertrain and brakes
• Front brake
• Clarks Clout 1, Hydr. Disc Brake PM/PM (160/160)
• Rear brake
• Clarks Clout 1, Hydr. Disc Brake PM/PM (160/160)
• Rear derailleur
• Shimano RD-TX800, 8-Speed
• Front derailleur
• Shimano FD-M315, Top Swing, 31.8mm Clamp
• Shifters
• Shimano SL-M315, Rapidfire-Plus
• Crankset
• Shimano FC-M315, 36x22T, 170mm
• Cassette
• Shimano CS-HG200, 12-32T
• Chain
• KMC Z8.3
• Cockpit
• Headset
• Cube FPH863, Semi-Integrated
• Handlebar
• Cube Rise Trail Bar, 680mm
• Stem
• Cube Performance Stem, 31.8mm
• Handlebar tape/Grips
• Acid React
• Wheels
• Rims
• Cube EX25, 32H, Disc, Tubeless Ready
• Front hub
• Shimano DH-3D32, Hub Dynamo, QR
• Rear hub
• Cube Alloy Light, QR, 6-Bolt
• Other parts
• Saddle
• Acid Venec Lite
• Seatpost
• Cube Performance Post, 27.2mm
• Seatpost clamp
• Cube Varioclose, 31.8mm
• Pedals
• Cube PP MTB
• Front light
• Cube Shiny 50
• Rear light
• Acid Mudguard Rear Light PRO-D, 6V, AC
• Standard
• Acid FM Pure Kickstand
• Mudguards
• Acid 65
• Carrier
• Acid Semi-Integrated Carrier, RILink Adapter Compatible and Rail
