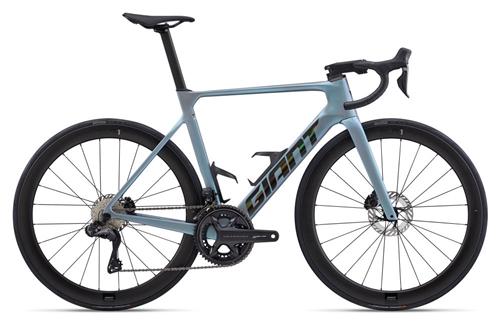

Meticulously developed for best-in-class aero road performance, this razor-sharp road racer was born to sprint, chase or make your attack. The frame is handcrafted using Advanced-grade composite material to produce a bike that’s lightweight and stiff with a responsive ride quality. The components are as integrated as they can possibly be, with smooth lines from the handlebar and stem, internal cable routing, and a WheelSystem that uses a 65mm deep rear rim for maximum aero performance and a shallower 42mm front for added control. Even the disc brakes are integrated into the frame, with flat-mount calipers and thru-axles designed to optimise the technology.
- SizesS, M, M/L, L, XL
- ColoursMetallic Blue
- FrameAdvanced-grade composite, disc
- ForkAdvanced SL-grade composite, full-composite OverDrive Aero steerer, disc
- ShockN/A
- HandlebarGiant Contact SLR Aero XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
- GripsStratus Lite 2.0
- StemGiant Contact SL Aero XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
- SeatpostGiant Vector, composite, -5/+15mm offset
- SaddleGiant Fleet SL
- PedalsN/A
- ShiftersShimano Ultegra Di2 ST-R8170
- Front DerailleurShimano Ultegra Di2 FD-R8150
- Rear DerailleurShimano Ultegra Di2 RD-R8150
- BrakesShimano Ultegra Di2 hydraulic, Shimano RT-CL800 rotors [F]160mm, [R]140mm
- Brake LeversShimano Ultegra Di2 hydraulic
- CassetteShimano Ultegra, 12-speed, 11x30
- ChainShimano Ultegra, CN-M8100
- CranksetShimano Ultegra, 36/52, with Giant Power Pro power meterXS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
- Bottom BracketShimano, press fit
- RimsGiant SLR 1 50 Carbon Disc WheelSystem, [F]50mm, [R]50mm
- Hubs[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle, [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle,
- SpokesSAPIM CX-Ray
- TyresCADEX Race, tubeless, 700x25c (26.5mm), folding
- Extrascomputer mount, water bottle cages, tubeless prepared, 30mm max tyre size
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Integrated aerodynamics
- AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimizes aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes and Contact SLR/SL Aero cockpit produce the best overall aero performance.
- Easier adjustability
- All-new cable routing through the stem and head tube makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.
- Race-winning efficiency
- Advanced-grade composite frameset features high-performance materials and proprietary manufacturing processes. As a result, it’s lighter than the previous generation for an even greater stiffness-to-weight ratio.
|
|
|
|
|
|
|
|
|
