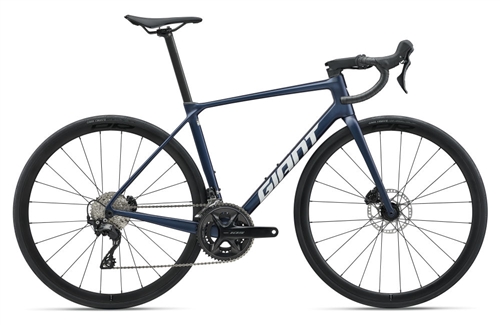

With an outstanding stiffness-to-weight ratio and updated aero tube shaping, this frameset is engineered for superior climbing capabilities, aerodynamic efficiency and sprint stiffness for race-winning performance.
- SizesXS, S, M, M/L, L, XL
- ColoursGloss Panther/Shoreline
- FrameAdvanced-grade composite, disc
- ForkAdvanced-grade composite, full-composite OverDrive steerer, disc
- ShockN/A
- HandlebarGiant Contact XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
- GripsStratus Lite 2.0
- StemGiant Contact XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
- SeatpostGiant Variant, composite, -5/+15mm offset
- SaddleGiant Approach
- PedalsN/A
- ShiftersShimano 105 2x12
- Front DerailleurShimano 105
- Rear DerailleurShimano 105
- BrakesShimano 105 hydraulic, Giant MPH rotors [F]160mm, [R]140mm
- Brake LeversShimano 105 hydraulic
- CassetteShimano 105, 12-speed, 11x34
- ChainKMC X12L-1
- CranksetShimano 105, 36/52 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
- Bottom BracketShimano, press fit
- RimsGiant P-R2 Disc wheelset, alloy
- HubsGiant alloy, 12mm thru-axle
- SpokesSapim
- TyresGiant Course 1, tubeless, 700x25c (28mm), folding
- Extrasfactory tubeless set up, 32mm max tyre size
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Class-leading efficiency
- With an outstanding stiffness-to-weight ratio and updated aero tube shaping, this frameset is engineered to give road racers and riders superior climbing capabilities, aerodynamic efficiency and sprint stiffness for race-winning performance.
- Advanced aerodynamics
- This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles. The result is a TCR that’s faster than ever in sprints and solo situations.
- Total control
- Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tires up 32mm.
|
|
|
|
|
|
|
|
|
