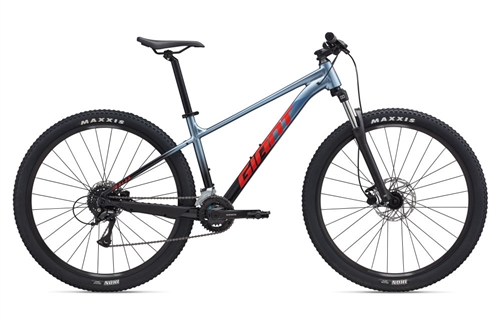

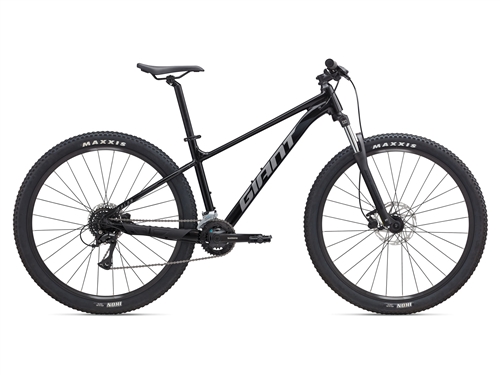

The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*,
- Specifications
- Sizes27.5: XS,S 29: M,L,XL,XXL
- ColoursGloss Frost Silver, Gloss Beeswax, Gloss Panther
- FrameALUXX-grade aluminium, disc
- ForkSR Suntour XCE, QR, steel steerer XS&S: 80mm travel (27.5) M-XXL:100mm travel (29)
- ShockN/A
- HandlebarGiant Connect Trail, 31.8mm XS&S: 690mm (27.5) M-XXL: 780mm (29)
- StemGiant Sport, 7-degree rise
- SeatpostGiant Sport, 30.9mm
- SaddleGiant ErgoContact Trail
- PedalsMTB caged
- ShiftersShimano Acera, 2x8
- Front DerailleurShimano Acera
- Rear DerailleurShimano Acera
- BrakesTektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm
- Brake LeversTektro HDC M275
- CassetteShimano Acera HG200, 11x34
- ChainKMC 8.3
- CranksetShimano Acera FC-M315, 22/36
- Bottom Bracketcartridge
- RimsGiant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
- Hubsalloy, sealed bearing, [F] 15x110 thru axle, [R] 12x142 thru-axle
- Spokesstainless, 14g
- TyresMaxxis Ikon 27.5x2.2 or Maxxis Ikon 29x2.2, wire bead
- Extras2.4" max tyre size
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- New geometry is optimized for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tires (up to 2.4-inch) for traction and grip on technical terrain.
|
|
|
|
|
|
|
|
|
