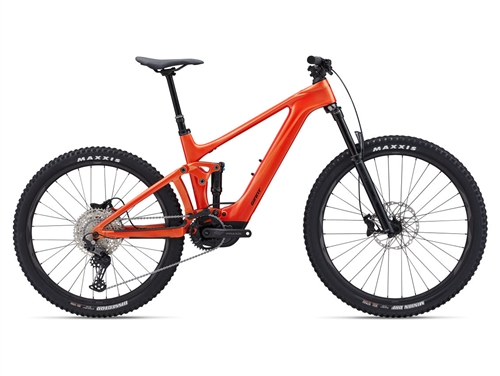

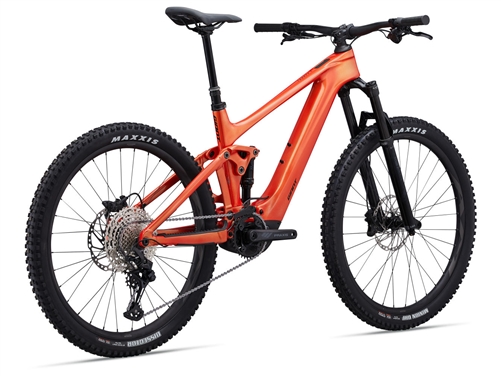

ACCELERATE UP CLIMBS, FLOAT THROUGH ROCK GARDENS, AND EXPERIENCE MORE POWER, AGILITY AND CONTROL WITH THIS LIGHTWEIGHT, FULL-SUSPENSION E-MTB. THE ULTRA-SLIM BATTERY MINIMIZES WEIGHT SO YOU CAN RIDE TECHNICAL TRAILS THE WAY YOU ALWAYS DREAMED OF.
- MotorGiant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology
- ControllerGiant RideControl Ergo3, grip integrated remote
- DisplayGiant RideControl GO, frame integrated LED console Optional wireless ANT+ display
- BatteryGiant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
- ChargerGiant EnergyPak 4A smart charger, 60% in 1:45
- ConnectivityGiant RideControl App enabled ANT+ wireless display signal with e-bike profile
- SizesS, M, L, XL
- ColoursGloss Helios Orange
- FrameAdvanced-grade composite frame, Aluxx SL-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
- ForkMarzocchi Bomber Z2 E-Tuned, 29er, 150mm travel, 44mm offset, RAIL damper Sweep-Adj, Kabolt 110
- ShockFox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%
- HandlebarGiant Contact SL 35 Trail, 35x780mm
- GripsGiant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
- StemGiant Contact SL 35
- SeatpostTranz-X Rad+ 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm)
- SaddleGiant Romero, Neutral
- PedalsPEDALS NOT SUPPLIED
- ShiftersShimano Deore 1x12
- Front DerailleurMRP HD2 co-moulded chain guide
- Rear DerailleurShimano Deore
- BrakesShimano BR-MT420, 4-piston, hydraulic disc,203mm [F/R]
- Brake LeversShimano Deore, I-spec EV
- CassetteShimano CS-M6100-12, 10-51T, 12-speed
- ChainKMC e.12 Turbo, EcoProteq, e-bike optimised
- CranksetPraxis N.W. 36T Cold Forged 4130 premium steel Praxis e-Cranks (Q-factor=168, S:160, M/L:165, XL:170)
- Bottom Bracketn/a
- RimsGiant AM30, Tubeless ready, 30mm inner width, 29" [F] / 27.5" [R]
- HubsShimano MT410 Boost, Center-Lock, 110x15 [F] 148x12 Shimano Micro-Spline Drive Body Thru-axle [R]
- SpokesSapim E-Lite [R] Race [F], e-bike optimised
- TyresMaxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
- ExtrasTubeless kit (liquid, valves, levers, manual, tool) Inner tube supplied
- LightingOptional:- Giant Recon series e-bike lights available and direct connectable
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Lighter weight
- EnergyPak 400 battery system is ultra slim, delivering all the power you need, but in a smaller package that’s cleanly integrated into the lightweight composite frameset.
- Advanced cockpit control
- RideControl Ergo 3 remote attaches to the composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customize your controls for a clean, uncluttered cockpit.
- More power
- New SyncDrive Pro Magnesium motor features a magnesium casing that reduces weight by 50g. It weighs just 2.5kg and delivers 85Nm of torque while retaining the instant engagement that characterizes SyncDrive Pro motors. It’s also engineered for a reduced noise level and quiet performance.
|
|
|
|
|
|
|
|
|
