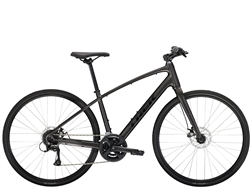

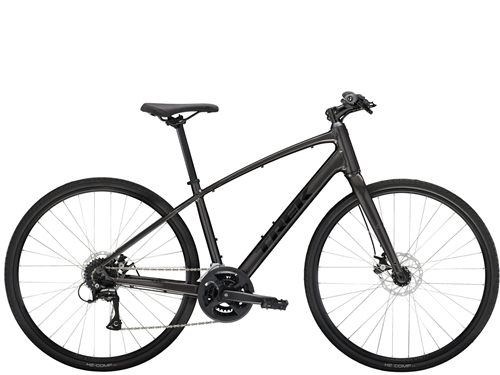

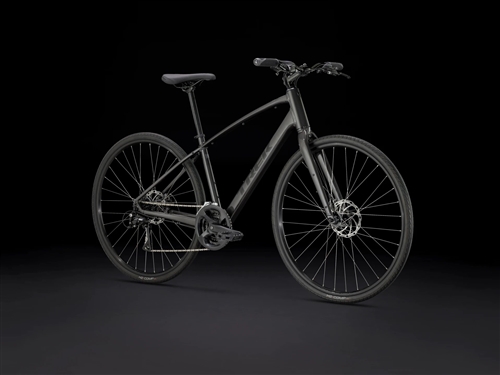

The FX 1 is a lightweight aluminium hybrid bike that looks great and feels just as good to ride. It has lots of gears so you can cruise any terrain comfortably, and powerful disc brakes that give you confident stopping power, rain or shine. It's perfect for anyone looking to get out more, do a bit of exercise or commute to work on a versatile bike backed by a lifetime warranty.
All Trek bikes must be collected in store there is no postage option for Trek bikes, please call for stock update also
- Frame Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR
- Fork FX steel, flat-mount disc, rack mounts, 410 mm axle-to-crown, ThruSkew 5 mm QR
- Wheels
- Hub front Formula DC-20, alloy, 6-bolt, 5x100 mm QR
- Skewer front 139x5 mm bolt-on
- Hub rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
- Skewer rear 152x5 mm QR
- Rim Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
- Tyre Bontrager H2 Comp, wire bead, 30 tpi, 700x35 mm
- Max tyre size 700x40 mm
- Drivetrain
- *Shifter Size: XS, S, M, L, XL
- Shimano EF500, 2-speed
- Size: XS, S, M, L, XL
- Shimano EF500, 8-speed
- Front derailleur Shimano Tourney TY606, 31.8/34.9 mm clamp, top swing, dual pull
- Rear derailleur Shimano Acera M3020-8, 40T max cog
- Crank Forged alloy, 46/30, chainguard, 170 mm length
- Bottom bracket Sealed cartridge, 68 mm
- Cassette Shimano 8-speed, 12-32T
- Chain KMC Z8.3
- Pedal Wellgo nylon platform
- Max. chainring size 1x: 44T, 2x: 46/32
- Components
- Saddle Bontrager Sport
- Seatpost Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
- *Handlebar Size: XS, S, M, L
- Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width
- Size: XL
- Bontrager Riser, steel, 25.4 mm, 30 mm rise, 620mm width
- Grips Bontrager Satellite
- *Stem Size: XS, S, M
- Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length
- Size: L, XL
- Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length
- Brake Tektro MD-U310 mechanical disc
- Brake rotor Tektro wave, 6-bolt, 160 mm
- Rotor size Max brake rotor sizes: 160 mm front and rear
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Lightweight frame for a fast, efficient, enjoyable ride
- DuoTrap S compatible: track your fitness, map your miles
- The right geometry for the way you want to ride
- Rack and fender mounts make it easy to accessorize/Disc Brakes
|
|
|
|
|
|
|
|
|
