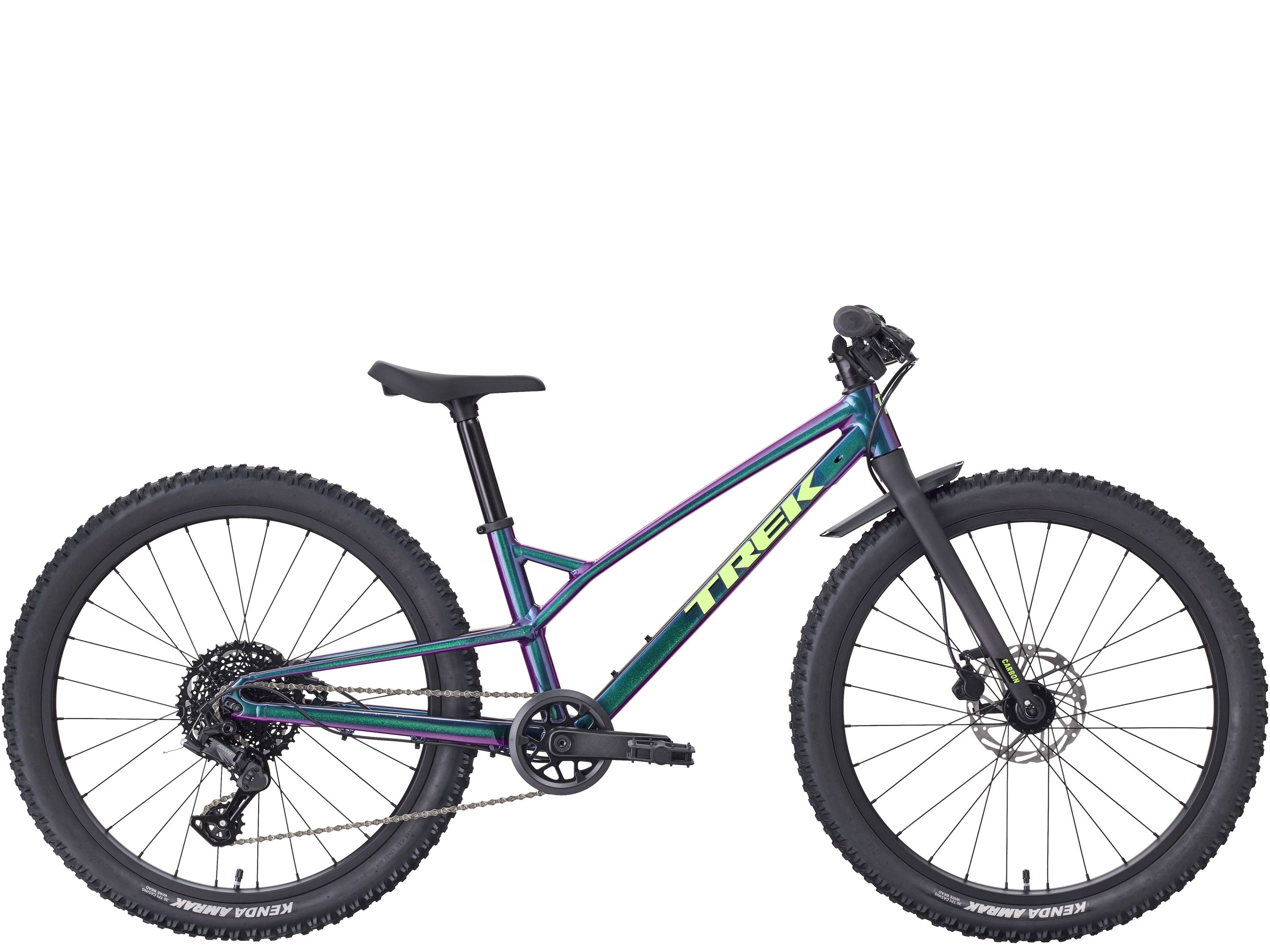

Wahoo 24 Trail is a light and tough kids’ bike that’s ready to roll off-road. Its sturdy aluminium frame is easy to manoeuvre as they weave their way down the trail, but rugged enough to handle the tough stuff
- Frame Alpha Silver Aluminium, 24"
- Fork Wahoo 24" carbon, post-mount disc brake, ThruSkew 5 mm QR
- Wheels
- Hub front Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew
- Skewer front 135x5 mm bolt-on
- Hub rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
- Skewer rear 169x5 mm bolt-on
- Rim Alloy 24", 28 h
- Spokes 14 g stainless steel, black
- Tyre Kenda Amrak, 30 tpi, 24x2.20"
- Max tyre size 2.40" with or without mudguards
- Drivetrain
- Shifter microSHIFT Advent Quick Trigger Pro SL-M6295, 9-speed
- Rear derailleur microSHIFT Advent RD-M6195M, 40-46T max cog
- Crank Alloy, 30T steel chain ring w/ guard. 127 mm length
- Bottom bracket Sealed cartridge, 68 mm
- Cassette microSHIFT Advent H093, 11-42, 9-speed
- Chain KMC X9
- Pedal VP-225 nylon platform
- Components
- Saddle Kids' padded, integrated seat post, Blendr light mount, 31.6x270 mm
- Handlebar Bontrager alloy, 31.8 mm clamp, 20 mm rise, 600 mm width
- Grips Kids' grip, 110 mm width
- Stem Bontrager alloy, 31.8 mm clamp, 6-degree, 45 mm length
- Head set Integrated, sealed cartridge bearings
- Brake Tektro HD-J285 hydraulic disc, short reach
- Brake rotor Tektro, 6-bolt, 160mm
- Rotor size Max brake rotor sizes: 160 mm front and rear
- Accessories
- Mudguard Trek custom
- Weight
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- An Alpha Silver Aluminium frame with 24” wheels and wide 2.4” knobby tyres that bite into dirt and give plenty of traction. Tons of gears to pick from with a 9-speed 1x microSHIFT drivetrain and serious stopping power from hydraulic disc brakes.
|
|
|
|
|
|
|
|
|
